Vehicle Backup Camera and 7 inch Screen Monitor System 12V/24V,2 x IR Night Vision Car Reverse Rear View Mirror Camera Kit with 4 Pin 15m 20m Cable for RV Bus Semi Truck Trailer 5th Camper

Price: $49.99
(as of Oct 03, 2024 03:00:29 UTC – Details)

Only need to connect the monitor power wire:

Red wire to car positive,
Black wire to GND,
Green/Blue wire to reversing gear trigger + (or No need to connect)
The 4Pin Aviation cable Already build with the video and power
No need to connect power cable for camera.
Simple to install and easy to use

This rear view Mirror camera monitor system is support reversing used or permanently used
Best for Long RV Bus Truck Trailer Camper 5th Wheels Motorhome Schoolbus Tractor and all of Heavy Duty

7 inch CAR TFT LCD MONITOR DC 12V-24V

Display Size:7.0 Inch
Resolution :800*480
System :PAL/NTSC Auto
Power requirement:DC 12V-24V
Consumption:6W
Video:2 channel video input; V1/V2 switch,
Rear-view: V2 auto reverse when reversing gear trigger activated
Net Weight:Approx. 743g

Rear View Mirror Camera

Image sensor:7070 mirror image without Grid Lines
TV system : PAL
Lens: 2.8mm(120 View angle )
Number of pixels:720(H)*586(V)
Horizontal Resolution: 480 TV Lines
Scan frequency:50Hz-60Hz
S/N Ratio:≥48dB(AGC OFF)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:Yes
Video Output:1.0Vp-p.1.5ω.4Pin Connector
Synchronous System:International Synchronization
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Focal distances:30mm to infinite
Weight: Approx 300g
Waterproof:IP 68

Package included:

1 x 4Pin 7″ Rearview Monitor
1 x Monitor Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
2 x 4Pin Rear View Mirror Camera
1 X 4Pin 15M/49ft Cable
1 X 4Pin 20M/65ft Cable
It came with Dual car back up cameras IP68 waterproof rear camera with 4-Pin Aviation Connector plug,18 LEDs IR infrared lights night vison clearly at night No grid lines rear view camera and 2.8mm len (120° horizontal wide view angle )
15m/20m 4Pin Aviation Extension long cable for RV Bus Pickup Truck Trailer Van Motorhome Schoolbus Lorry 5th wheel Camper and All other heavy Duty

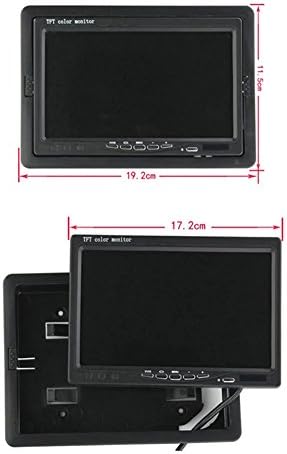

7 inch Rearview screen Monitor with high resolution image (800×480 Pixels), full color display and low power consumption, nice size display and clear,can adjustable brightness, contrast and color. Image can be rotated horizontally and vertically for mirror or none mirror viewing with 2 channel video input,V1/V2 button switch,2 connector plug,V2 is remote by Blue wire for reversing use priority,can switch back and front between cameras easily
Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+)
