VMST 1080P HD RV Horse Trailers Backup Camera Kit, 7” LCD HD Monitor and 33ft+66ft Extension Video Cord + Trailer Cord Kit for 5th-Wheels, Truck, RV Trailers, Motorhome and All Trailers
Price: $159.99 - $109.99 (as of Aug 29, 2024 07:45:23 UTC – Details)
Product Description
VECLESUS VMST 1080P HD RV Horse Trailers Backup Camera Kit 33ft+66ft Extension Video Cord
Product Information:
Panel Size: 7″ TFT LCD digital panelCamera Sensor: 1/3″ Sharp color CCDResolution: 800*RGB*480Brightness: 300cd/㎡Screen Mode: 16:9Video System: NTSC / PAL auto detectionBuilt-in speaker, removable wide sunshadeHorizontal Viewing Angle: 100°Diagonal Viewing Angle: 120°Camera Waterproof Rating: IP68Power Supply: DC 9~36VOverall Dimensions: 5.31″(H) x 8.27″(L) x 2.95″(D)OSD menu, Remote Control.Audio/video Input: CH1, CH2, 1 Audio & Video input66FT Extension Cord, 33FT Extension Cord, Trailer Connector Cables, Power Cords.
Installation Guide for Long and Large Trucks
Powerful Function
Built-in High Sensitivity Microphone
Built-in high sensitivity noise reduction microphone input.Rear view screen picture and audio fully equipped.Micro microphone input, waterproof and dustproof.
Superior Infrared Night Vision
The camera is equipped with 18 infrared night vision LEDsAutomatically turn on infrared night vision Built-in high sensitive infrared night vision chip enhances night vision effect
IP68 Waterproof
Camera with over 12 hours immersion test.High quality waterproof treatments connector.Works perfectly in snow, sleet or rain.
Multiple Mounting Methods
Up to three mounting methods with bracketsMounting position as you wishUpgraded suction cup holder for a stronger suction on the windshield
High Quality Materials
Material of wires controlled strictly, quality firstAvoid short circuit with specially waterproof connectorsEnsure the system can work great within -40℉ to 158℉
Larger Sunshade Design
larger sunshade design100% anti-glareThe screen is clearly visible in intensity sunlight
Nomal/Mirror/Flips Mode
Support normal/mirror and oglFlip mode, not only can be used as a backup camera but also can be installed in the front of your vehicle.
Ajustable Parking Grid Line
The parking line can be adjusted ON/OFF for many purposes, it depends.
VECLESUS VMST Kit Package Contents Show:
Tips:

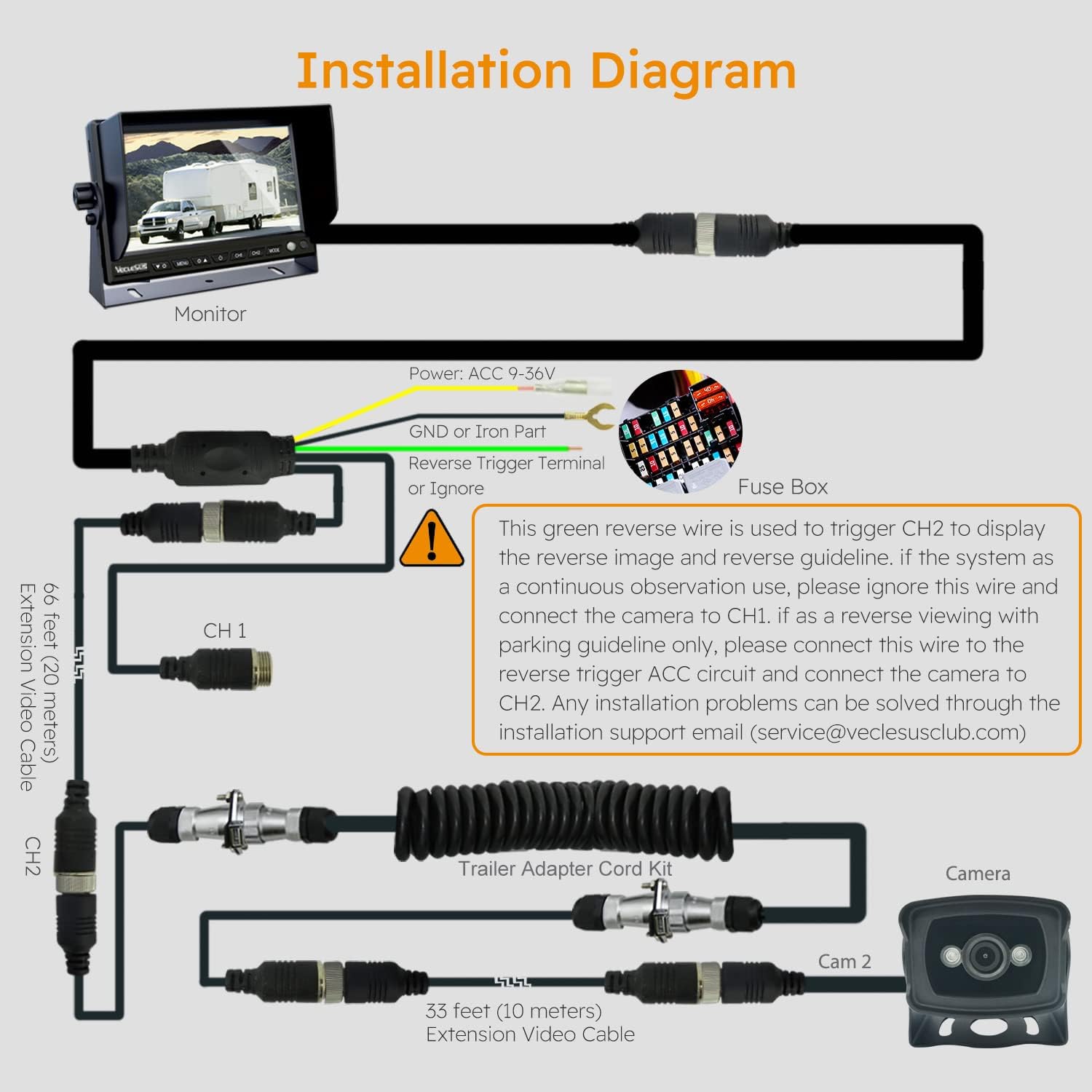

During installation, please refer to the wiring diagram above and read the user manual carefully in the package.We offer installation video, you can search text “VECLESUS VMST” on YouTube.
Note：
Although this product is a one-to-one backup camera kit, the power cord is still equipped with two signal input 4-PIN connectors. If you need to use two cameras, please purchase our extension cord and the corresponding camera VC2(Asin: B07JQFDVFR) or VC3(Asin: B08C4V84D1).In addition, generally, the spare AV input port can also be used as channel CH3 by connecting the AV-in cord.This kit is powered by the power supply at fuse box in your vehicle cab, please find out the continuous power supply and reversing power supply with the test pencil or multimeter, then connect the red wire of the power cord to it and the black wire to the GND or iron part, green wire to reversing power supplyIf you need the system for reversing only, please connect the camera to the CH2 and connect the green reversing wire to the reversing circuit.If you need the system continuous on when driving or parking, connecting the camera to CH1 and ignore the green reversing wire!
FAQ:
Will I be able to install this camera system myself?
Many people do have the handiness to install our systems without having to hire assistance. Otherwise we recommend professional installation as they can let the system is installed correctly.
How do the system receives power?
This system can be worked in 9-36V, it receives power straight from the vehicle’s fuse box.
Wireless or Wired
Wired Wired Wired Wireless Wired Wired
Night Vision
Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision
Monitor Mount Position
Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield
Waterproof Rating
IP 68 IP 68 IP 68 IP 69K IP 68 IP 68
The Length of Extension Cable
66ft+33ft 66ft 33ft 66ft(20m) stable long distance transmission 49.2ft(15m) 16.4ft(5m)
Supports Several Video Inputs
2 2 1 1 3 1
▶For All Trailers Parking Safety – This trailer backup camera kit comes with a 33ft(10M) and a 66ft(20M) extension cord, trailer connector kit(Detachable), works perfectly on wide voltage 9~36V, widely applicable to all kinds of medium and large trailers, such as RV trailer, truck trailer, horse trailer, 5th-sheels etc. ▶Easy to Install – This backup camera kit powered by fuse box, connected the red to ACC(9-36V), the black connect the Metal (Ground), the green connect the reverse gear circuit as a trigger power, monitor and backup camera will automatically turn ON/OFF when the vehicle is ON/OFF, different channels can set by the button on monitor, NOTE: CH2 is as reversing channel, can be triggered by the Green wire (Connection Diagram and Installation Instruction are included) ▶7 inch Rear View Monitor and 2 Channel Video Inputs – 7 Inch LCD display monitor can directly attached to dashboard or windshield with provided brackets, and the monitor also has capability to monitor two video inputs CH1/CH2. CH2 connects reverse camera, and CH1 can add a front/side camera for better safety. Additional backup camera recommended: VECLESUS VC2( ASIN: B07JQFDVFR ) or VC3( ASIN: B08C4V84D1 ) ▶IP68 Waterproof and Super IR Night Vision – Based on IP68 Waterproof Level and CMOS Sensor will present superior clear images even on rainy days. While the IR LEDs will give low light compensation and ensure the vivid images during the night ▶Reliable service& Warranty – Our car backup camera system has 2 year Warranty and 24 hours tech support and replacement service. Any problems, please feel free to contact us via amazon or the method to contact us had highlighted on the user instruction
