Vehicle Backup Cameras Monitor System 12V/24V,4 x HD 1080P Front Side Rear View Camera + 7″ inch Quad Split 4CH Car LCD IPS Monitor for RV Bus Truck Trailer Caravan Camper
Price: $199.99 (as of Aug 22, 2024 08:30:28 UTC – Details)
Product Description
ZhanHongXiang AHD 1080P 7″ 4-split Front Rear Side View Backup Camera System
7 Inch 4 CH Camera Video Quad Split TFT LCD Color IPS Monitor System
Applicable to variety of Vehicles: car, truck, RV, mini-van, Semi Box, Trailer, 5th wheel, camper, Tractor and all 12V-24V Heavy Duty
AHD 1080p backup camera 7 inch IPS monitor

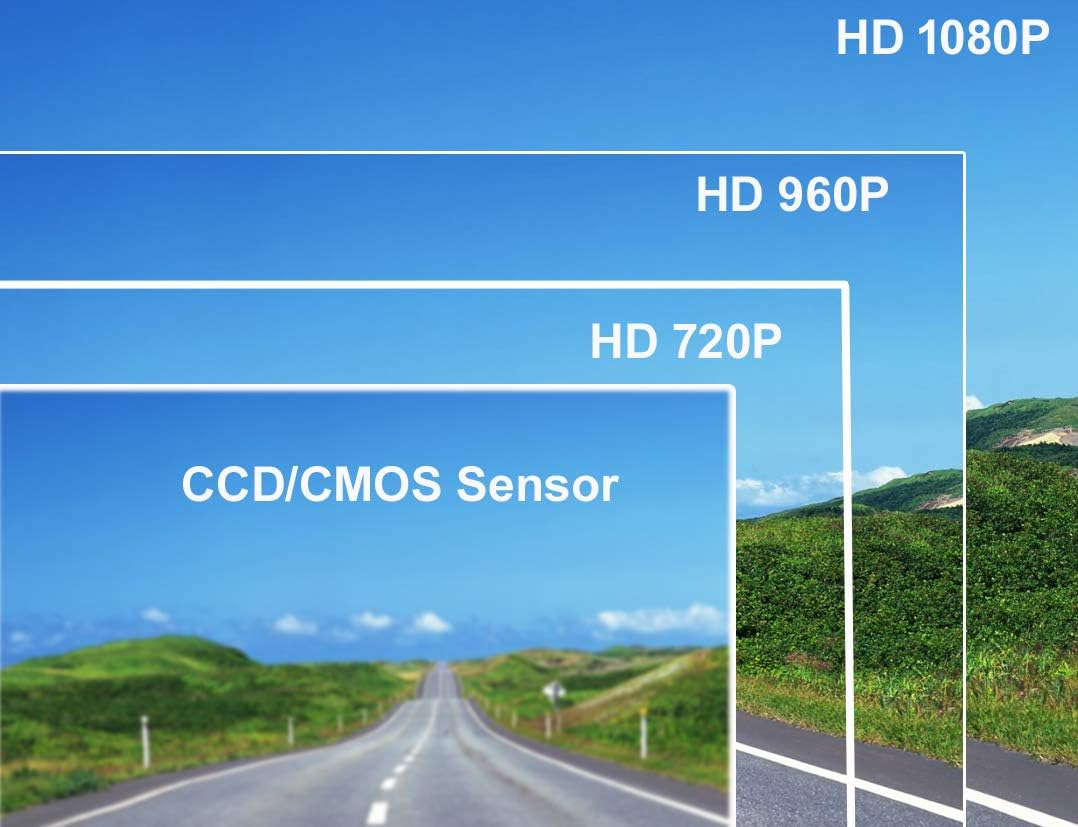

Clear image with 1080p Backup Camera
Monitor
7 Inch AHD Screen4-splitResolution: 1024X600 pixels
Backup Camera
100% Not Wash Out AHD 1080P Sensor Mirror image Resolution:2.0 MP Camera(1920*1080P)Night vision: 12/18 LED IRView angle:140°for 18 led cam,120°for 12 led cam
Power requirement :DC 12V-24V
work Temperature:-20°C~+60°C
Mirror image
Each input can be adjust for mirror image or none mirror image or flip with upside down, so you can use each camera as front view or rear view camera system with the monitor at your enjoy
Split Mode
More than 8 view mode
Reverse Grid Lines
Reverse Grid Lines turn on with CH2 Trigger wire,if not connected the trigger,reversing grid line off, show with clear image
Monitor Size 7 inch Monitor Input 4 Channel Video Input Monitor Resolution 1024 x 600 Waterproof Level IP68 Camera Materia Metal Power Supply DC 12V-24V Camera Real Angle of View 140°for 18 led cam,120°for 12 led cam Camera Image Sensors AHD 2053 (HD 1080P)
easily installation
only need to connect monitor wire as the diagram
red wire to car key on ACC+Yellow wire to car battery+black wire to GNDgreen wire to reversing trigger+blue wire to turn left light+grey wire to turn right light+ No need to get special power wire for camera
The backup camera system come with 4pin 5m/10/20m long cable for camera,
The 4pin cable already build with power wire in it,just link the camera to monitor is ok
for Front rear side view
Best for RV Camper Semi Box Truck Tractor security system
Package list 1 x 7 Inch AHD IPS Quad Split Monitor 1 x Monitor Harness Cable 1 x Bracket ,1 x Sunshade 1 x Remote Controller 2 x AHD 1080P 18 LED Backup camera 2 x AHD 1080P 12 LED Side view camera 1 x 10m/20m 4 Pin cable 2 x 5m 4 pin cable
Is Discontinued By Manufacturer : No Product Dimensions : 10.24 x 7.87 x 6.69 inches; 6.88 Pounds Date First Available : August 2, 2018 Manufacturer : ZhanHongXiang ASIN : B07G482W6H Country of Origin : China
HD 1080P Car Backup Camera for RV Truck Parking System: 7″ Quad Split 4 CH Video IPS Monitor (1024×600 Pixels) + 4 x AHD 1080p Backup Front Rear View Side View Camera + 4 Pin Aviation Connector Cable. Hard wired version, guarantees safe, clear and stable 360° blind spot view image. Come with 2x 18 LED IR Night Vison Car Color Backup Front Rear view mirror Camera (140° ) and 2x 12 LED IR side view Camera with 2.8mm(110° ) IP 69 Waterproof with Mirror image Image with 1920X1080 pixels, Much More clear than other cmos / ccd camera Support all 12v 24v vehicle,come with 1x 20m/66ft ,1x 10m/33ft ,2x 5m/16ft 4pin Aviation Extension cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry and other heavy Duty 7 Inch Quad Split Color IPS Monitor. It has the 4 CH video input And it has the video quad Split functions. it can be set the video CH1, CH2, CH3, CH4 Full images/2 images/3 images/4 images , Mirror or none mirror image adjustable,Grid Lines turn on/off There is 3x trigger wire to control 3 video input priority，can be connect for reversing gear trigger+,turn left light+ ,turn right light+
