QX210-NW2 Industrial 4G LTE WiFi Router For T-Mobile EIOTCLUB SIM Card, Not For Verizon/ATT, Cellular VPN Routers Internet Backup, M2M Gateway RS232 Modem For RV Security System CCTV Camera Automation
Price: $159.00 (as of Sep 02, 2024 21:45:17 UTC – Details)
Product Description
QX210 Router Applicable Scenarios
This is a robust LTE/4G router (modem) that is designed to provide a flexible internet network for IoT/M2M devices, its key advantages are: provides a mobile network to help clients avoid building high cost wired network, super reliable network connection (keep always connected with internet, auto reboot when internet breakdown), security data transmission (RS232 data transmission, VPN Client Modes, DDNS…).
It adopts CAT4 cellular module, the speed is lower than cell phone speed, but it is well meets camera and most machines’ transmission requests, also it is more flexible to provide 7/24 hours internet for machines than cell phone hot spot. Here are the Applicable Scenarios and Inapplicable Scenarios for your reference:
APPLICABLE SCENARIOS: Video Surveillance, CCTV, Remote Camera, Access Control, Industrial Automation Devices, ATM, Smart Package Locker, Charging Station, Smart Grid, Energy (Power Substation, Solar PV System, Wind Power Station), Electrical Substation, RVs, Backup Internet, Vending Machine, Digital Signage, kiosk, Auto Gate, Bus, Fleet Management, Environmental Monitoring Equipments, Smart Agriculture, Smart Cities, Smart Metering, … and so on.
INAPPLICABLE SCENARIOS: Request faster speed than the cell phone, Very Low Cellular Signal Strength Area.
Convert 4G Signal To Remote Home Business Industrial Travel Wi-Fi Ethernet Internet
1. Unlocked and Wide 4G/3G Bands Compatible with US T-mobile Cellular Carriers (NOT FOR VERIZON, AT&T), and Support data SIM Card such as EIOTCLUB, Simbase…
– 4G/LTE supports bands: B2/4/5/12/13/17/B18/B25/26/41 (Import to check if your sim card local area are within these frequency bands before purchase.)
– 3G supports bands: B2/4/5
– It is unlocked and covers most frequency bands of cellular carriers of T mobile (NOT FOR Verizon) and support data sim card such as EIOTCLUB, Simbase…
2. For VERIZON, AT&T sim card. Some clients said they were required to input IMEI number or some specific setting to make it work. If you could schedule a time to allow our engineer to remote to the router to help you set it up, then you can have a try after confirming the 4G frequency bands are compatible.
3. Multiple Internet Access

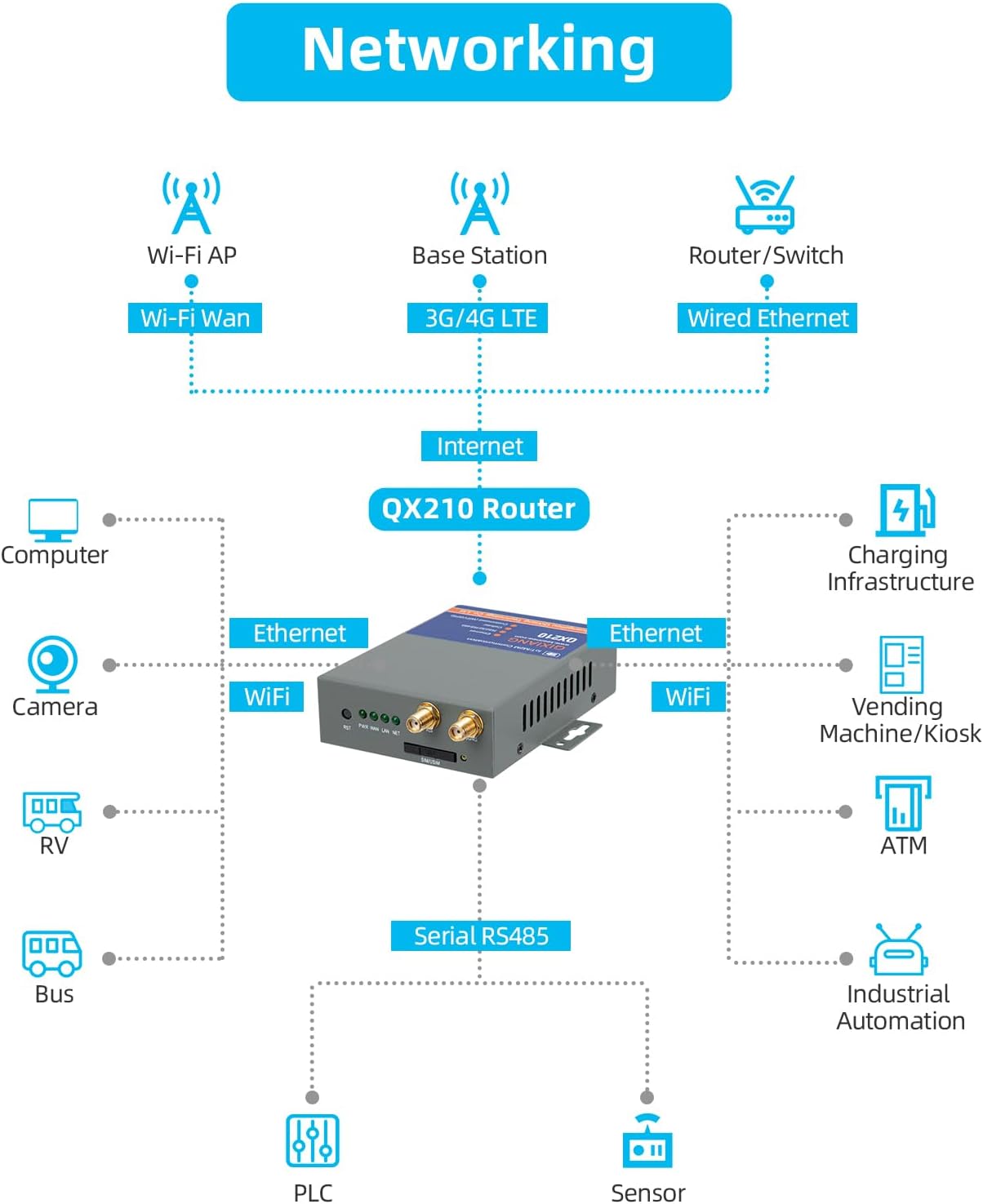

This modem router has two Ethernet ports (RJ45), Wi-Fi (2.4Ghz, 802.11b/g/n, AP and Client mode), and Serial Port (RS232), which enable your devices easy to find a way to connect it to get internet via 4G LTE network.
4. See What Our Clients Said:
– If you have an RV, or a vacation cabin, and don’t have access to the internet but do have a cell signal, this could be a great option to give you connectivity.
– I use this for a remote camera installation, they performed well in harsh environments.
– Deployed this device to my fleet and provide Wi-Fi for passengers and cameras.
– It served as a very handy backup when my ADSL line went down.
– We used it in an industrial automation project to provide internet, super reliable to keep machines online, and handles extreme heat and cold well.
– Built in our smart kiosk, it will use super market’s WiFi network first, and use 4G network as backup with fail over function.
Industrial Grade Design, Security and Powerful functions for Professional Applications
1. Industrial Grade Design
– Rugged metal casing, handles extreme heat and cold well.
– Wide working voltage DC 7.5V to 32V. ESD and lightning protection.
– Both hardware and software watchdog, multi-layer link detection mechanisms
– RS232 DTU function, MQTT. Serial passthrough, Modbus RTU/TCP protocols. Serial Master/Client modes.
4. Powerful Functions for Professional Application
– Port Forwards, Static NAT, DDNS, SNMP.
– Load Balancing, enables network failover between Wired/Wi-Fi and Cellular.
– Timing/Auto reboot function.
QX210 Industrial 4G Router Datasheet
Cellular 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Wi-Fi IEEE 802.11b/g/n, Access Point (AP), Station (STA, Client) LAN 1×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD WAN 1×Ethernet interface(RJ45), Auto MDI/MDIX, built-in ESD, WAN can be converted to LAN Serial Port 1 x RS232, 3 pin industrial socket Antenna Interface 2 standard SMA antenna interface (WIFI and 3G/4G），50ΩSMA SIM/UIM slot SIM/UIM card mounting plate to protect falling. 1.8V/3V automatic detection Power Supply 7.5V-32V(standard DC12V/1A), built-in power transient overvoltage protection CPU 560MHz Flash/RAM 16MB/128MB Shell metal plate shell Dimension 95.5×70.5×25mm Weigh About 210g Operating Temperature -30 to 70°C
Add to Cart
Add to Cart
Customer Reviews
4.7 out of 5 stars
3
—
—
Price
$159.00$159.00
— $179.00$179.00
Ethernet Ports
2 2 5
Mounting
Wall Mount / Desktop DIN-rail Mount / Desktop Wall Mount / Desktop
SIM Card Slot
1 2 1
Serial Port
1× RS232 1× RS232 and 1× RS485 1× RS232
Wi-Fi
2.4Ghz, 802.11b/g/n, Access Point and Client Modes 2.4Ghz, 802.11b/g/n, Access Point and Client Modes 2.4Ghz, 802.11b/g/n, Access Point and Client Modes
Dimension
3.74×2.75×0.98 in 4.01×3.93×1.65 in 5.98×4.09×0.98in
Weigh
210g 355g 410g
【Convert 4G Signal to Project/Camera/Vehicle Wi-Fi & Ethernet Network】: Insert SIM card, plug and play (some SIM cards may need to follow the manual to set APN). QX210 4G LTE router can share the 4G network with electronic devices in places without broadband coverage anytime/anywhere. Its 4G LTE CAT4 module supports B2/4/5/12/13/17/18/25/26/41, covering most frequency bands of US (ex T-Mobile and EIOTCLUB), NOT FOR Verizon/ATT. Support Canada, Mexico. It is unlocked 【Industrial Design & Reliable】: This VPN router is a 4g router with SIM card slot. Rugged metal housing, 3.74×2.75×0.98in compact size for mass deployment. Working Temperature -22 ℉ to 158 ℉ (-30 to 70℃), Working Voltage DC 7.5V to 32V. ESD and lightning protection, Watchdog, multi-layer link detection mechanism, Wired WAN WiFi Cellular failover, automatic redial and recovery. It has a record that stays online for more than 425 days without breakdown in our clients’ project environment. 【Powerful Networking & Functions】: This LTE modem provides Internet Access via Wired Ethernet, WiFi (802.11b/g/n, AP and Client), and Cellular (4G/3G), it is ideal to work as a main or backup internet. Support VPN client modes (GRE, PPTP, L2TP, IPSec, EOIP, N2N, OpenVPN), Qos, DMZ, Firewall, Port Forwards, NAT, Load Balancing, DDNS, SNMP, Serial RS232 DTU, Modbus RTU/TCP protocol. It is ideal for a variety of IoT M2M scenarios and offers a high-quality networking solution for unattended sites. 【Wide Applications】: QX210 router modem is easy to deploy, cost & time saving, reliable works day and night with 24/7 internet access. It is widely used for RVs, remote camera systems, holiday cottages, buses, vehicles, trucks, industrial automation, vending machines, digital signage, smart grids, construction sites, and any other places that require a network. It can also be used as a reliable failover and backup network for the wired network in retail stores, gas stations, warehouses, etc. 【Easy To Use & Install】: QX210 cellular router is an all-in-one solution that includes router, ethernet cable, antenna, power adapter, user manual, and SIM card adapter. Screw holes on the sides for wall mounting make it easy to place on a desktop or mount on the wall. SIM card adapter allow you to insert the different sizes of SIM cards. Follow the English User Manual to configure the powerful router. We offer free technical support and system consultant services. Contact us for any request.
