Proxicast 10 dBi High Gain 4G / LTE, 5G Wideband Fixed Mount Fiberglass Outdoor Omnidirectional Antenna for Verizon, AT&T, T-Mobile & Other Cellular Networks or WiFi Router/Access Points (ANT-127-002)
Price: $122.95 (as of Sep 14, 2024 21:45:23 UTC – Details)
Proxicast’s 24” easy-to-install outdoor omni antenna improves transmit & receive signals for all 4G/LTE & 5G frequencies on Verizon, AT&T, T-Mobile, Bell Mobility, Rogers, Telus, Telcel, Movistar, Digicel and others.
It is compatible with Mi-Fi Hotspots, external 4G/5G cellular modems, routers and signal amplifiers from Cisco, Cradlepoint, Digi, Inseego, MoFi, Netgear, Pepwave, and Sierra.
Wideband Coverage
Use this antenna for any radio service between 600 and 6000 MHz such as WiFi, Helium, 900 MHz, LoRa, CBRS or FirstNet.
The omni-directional design provides high gain without the alignment hassles of directional antennas.
The gloss white finish blends into any environment making it ideal for outdoor applications such as rooftops, utility poles, surveillance, remote telemetry, homes and offices.
Requires a direct coaxial wired connection to an existing modem, router, amplifier/booster. WILL NOT boost reception of cell phones – they require a powered booster/amplifier.
Note: Use our XBOOM cross-over bracket (ASIN B079WTQ4CM) to install 2 identical antennas separated by at least 22 inches for best MIMO performance.
Key Features 10 dBi Peak Gain 600-6000 MHz Coverage N-Female Jack 24″ Tall Outdoor Rated – IP67 Pole/Wall Mountable Professional Grade
Specifications

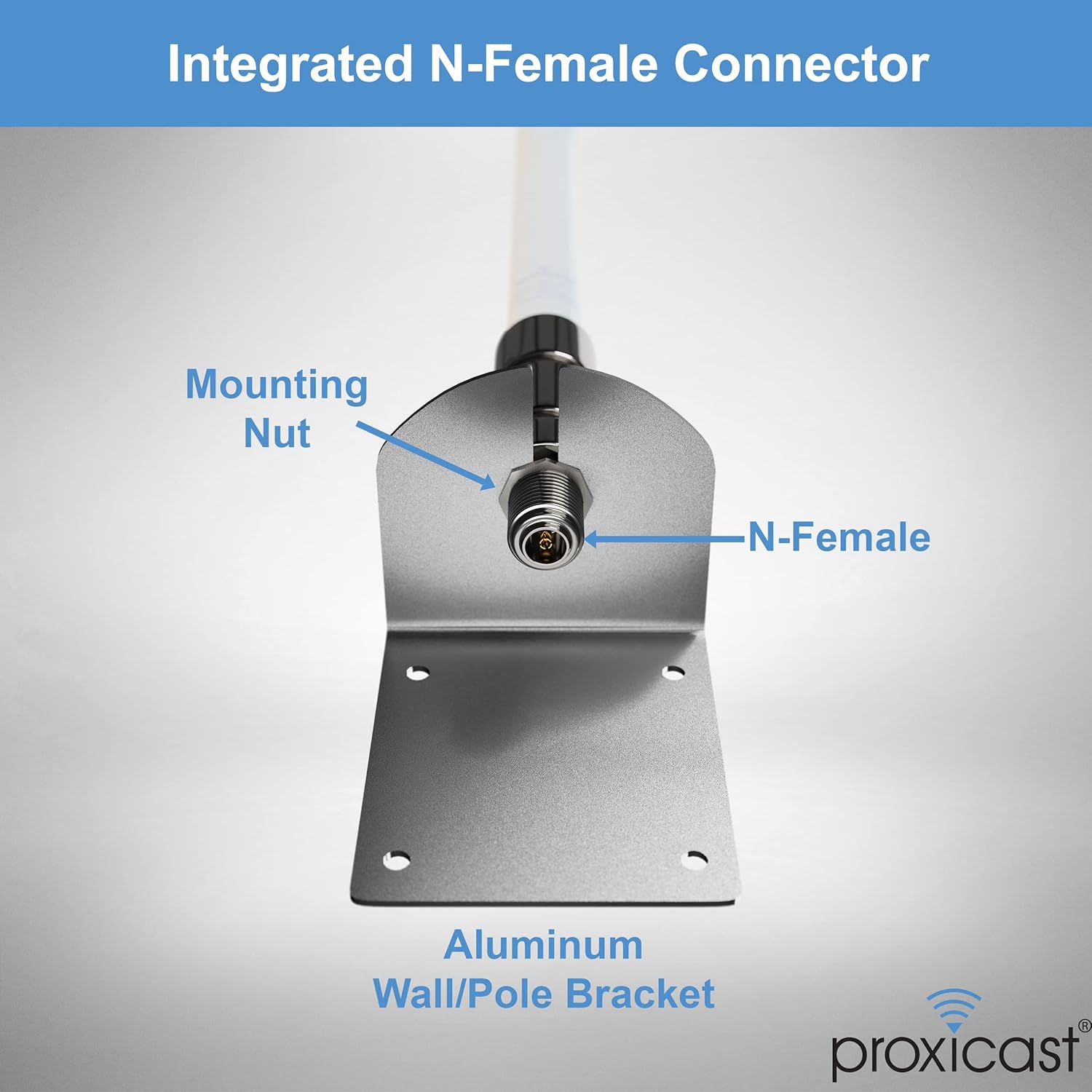

Frequency Range: 600 – 6000 MHz (4G / 5G / WiFi / CBRS / FirstNet / LoRa / Helium / 900 MHz) Peak Gain: 10 dBi Radiation Pattern: Omni-Directional Polarization: Vertical Impedance: 50 Ohms Connector: N Female – bottom integrated Material: Fiberglass, Stainless Steel & Aluminum – White poly-urethane coating Height: 23.6 inches (600 mm) Mount: Pole/wall (bracket and 2 inch diameter U-bolts included). For Marine Mounting use adapter BRK-114-FF.
You May Also Need
Coax is Critical
The wrong cabling can wipe out antenna gain. Use only low-loss 50 Ohm coax designed for high frequency applications like our ANT-140-020 series available in multiple pre-made lengths.
Water is the Enemy
If moisture gets into the cabling it can create intermittent shorts and permanent damage. Seal all outdoor connections with our ANT-900-002 Pro-Grade Coax Silicone Sealing Tape.
Protect Yourself
Outdoor antennas should include inline lightning arresters to protect equipment and structures. Our ANT-21x-002 series gas discharge lightning arresters protect against strikes up to 10 kA.
For Best Results
Orient antenna verticallyMount antenna as high as possibleKeep coax leads as short as possibleDon’t use 75 Ohm coax (RG6, RG59)Don’t use a splitter to connect 2 modem ports to one antennaFully tighten coax connectors to antenna connectorsPosition away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objectsStand 3+ feet away from antenna when testingMaximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
5G ANTENNA IMPROVES SIGNAL STRENGTH and SPEED on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all Sub-6 Cellular Broadband Services (600 – 6000 MHz) HIGH GAIN ROUTER ANTENNA – Compatible with Routers, Modems and Gateways from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Sierra, ZTE and many others OMNI DIRECTIONAL WIFI ANTENNA – Use as an Outdoor WiFi Omni Antenna – 6-8 dBi Gain for all WiFi Frequencies INTEGRATED FEMALE N CONNECTOR – No Additional Ground Plane Needed WEATHER RESISTANT Sleek High Gloss White Urethane and Fiberglass Finish Designed for Outdoor Antenna Installation. Includes 2-Way Pole/Wall Mounting Bracket and Hardware (mast sold separately) MUST BE CONNECTED VIA 50-OHM COAXIAL CABLE TO AN EXISTING CELLULAR MODEM/ROUTER/RADIO DEVICE. Does not improve signal for cell phones or other devices not directly wired to the antenna
