ACOPOWER 500 Watt Solar Panel Kit, 5PC 100W Polycrystalline Off-Grid System Solar Kit for RV Home Marine +40A MPPT Controller+Z-Brackets+Y Connectors+Solar Cables+Cable Entry Housing
Price: $648.00 (as of Aug 17, 2024 09:30:24 UTC – Details)
Product Description
12V Solar System Designed for off-grid use with the ability to easily charge most 12V batteries:
GelSealedFlooded (Wet Cell)Lithium Ion
ACOPOWER 500W Solar Panel Kit | 40A MPPT Charge Controller
This 500W Solar Kit is designed with off-grid in mind. Suitable to mount on RVs, green homes, cars, and boats.
Solar Module: 5PCS 100W Polycrystalline MPPT Charge Controller: 40A MPPT Cables: 1 pair 30ft 12AWG cable with PV connector to connect to the charge controller, 1pair 8FT 8AWG Tray Cable to connect the charge controller to your battery; Mounts and cable Entry housing: Five set of z-brackets and a waterproof cable Entry housing1 Pair 1Y4 M/FFFF and F/MMMM Branch connector1 Pair 1Y2 M/FF and F/MM Branch connector
100W Poly Solar Panel
Specification
Peak Power (Pmax):100WPeak Circuit Voltage(Voc):22VMax Power Voltage(Vmp):17.48VShort Circuit Current(Isc): 6.21AMax Power Current(Imp):5.72AWind resistance:2400paWeight:17.6 lbDimension: 40.2*26.4*1.4 InchApplication Class:Class A

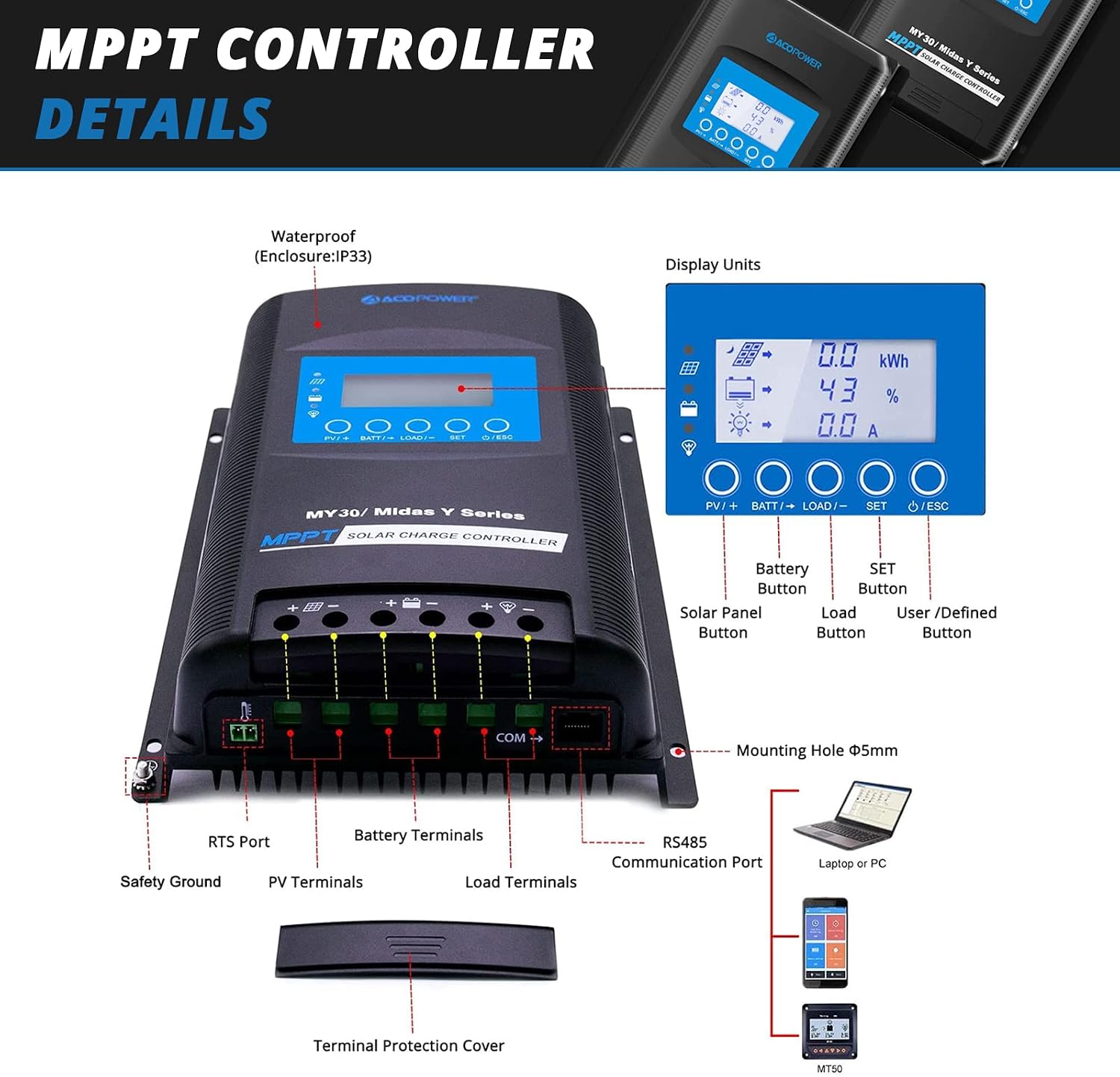

40A MPPT Charge Controller
12 / 24VDC automatically identifying system voltageRated charge current: 40AMax Input Power: 520W/12V 1040W/24VMax.PV open circuit voltage:100VDC (92V at 25℃ temperature)Battery type selection: lead-acid (Gel, Sealed, Flooded) and LithiumNegative Grounding DesignInstallion Notes：First connect the battery；Then connect the load; Finally connect the solar panel.
Z Brackets
5 Sets Mounting Z Brackets
Cables and Housing
1 Pair 30ft 12AWG PV Cable with female/male connector
1 Pair 8FT 8AWG Tray Cable
A waterproof cable Entry housing
1 Pair 1Y4 and 1 Pair 1Y2 Branch connector
How to properly set up a basic system
First, the battery should be hooked up to the charge controller. You could use our tray cable or any general stranded copper core wire to connect the two. Make sure that you lead the wire into the battery terminal of the charge controller and match the + and – to the battery + and -. Make sure to screw in the exposed wire tightly inside the controller terminal. Then screw on the battery rings to the battery.
Second, then connect your solar panel to your charge controller. We recommend that you connect the adapter kit to your panel first, then follow the + or – sign coming off of the leads of the panels and match it with the + and – sign on the charge controller. Be careful at this step, because if the panel is inserted incorrectly, you can have reverse polarity and short the system causing damage to the panels or controllers.
Lastly, you can hook up your inverter to your battery by using battery ring cables and by matching the + to + and – to -.
[Solar Starter Kit] 500 Watt Solar Panel Kit is Fully Equipped, and The Necessary Accessories from Input to Output are Covered in it, which is ideal for novice and customers who are looking for convenience. This solar kit includes 5pcs 100W poly solar panel, 40A charge controller, 5 sets mounting z bracket, 30ft 12AWG PV cable, 8ft 8AWG tray cable, cable entry housing, 1Y2 branch connector, 1Y4 branch connector. [Ideal Choice for Permanent Installation] Advanced laminated technology and long-lasting ETFE material of 100W polycrystalline solar panel supports high light transmittance, scratch-resistant and easy to clean. And anti-reflection tempered glass and corrosion-resistant aluminum frame reinforces safety and impact resistance, which allows each panel to withstand high wind (2400Pa) and snow loads (5400Pa). Solar panel for home is perfect for permanent or semi permanent installation. [Monitor & Protect Devices] 40A MPPT uses maximum power point tracking technology and automatically regulates charging profiles relative to ambient temperatures, providing the best level of charge in any condition and protecting against over-charge, over-discharge, overload, and short circuit. User programmable for battery types, load control etc, via PC software or remote meter MT-50. [Wide Application & Compatible]Solar Kit for RV. Solar panel kit is designed for RV, cabin, rooftop, caravan, shed, greenhouse, boat, back-up and remote power use, which can be connected in parallel for 12V battery charging or in series for 24V battery charging. And compatible with lead acid, AGM, gel, and lithium batteries. 40A MPPT of 500 Watts RV kit allows expansion to 1040W in series and 520W in parallel. [25-year Power Output Warranty] We offer a 25-year transferable power output warranty on solar panels and 1-year warranty on rest of the kit components. ACOPOWER solar panels are factory-automated production without manual participation, so the probability of damage is low. If the panel you received is damaged due to transportation, please contact us as soon as possible.
