Product Description
ZhanHongXiang Backup Camera System with HD 1080P 9 Inch DVR Monitor, Wired Backup Camera Kit for RV/Truck/Semi/Trailer
Large Screen and clear video for your vehicle safely

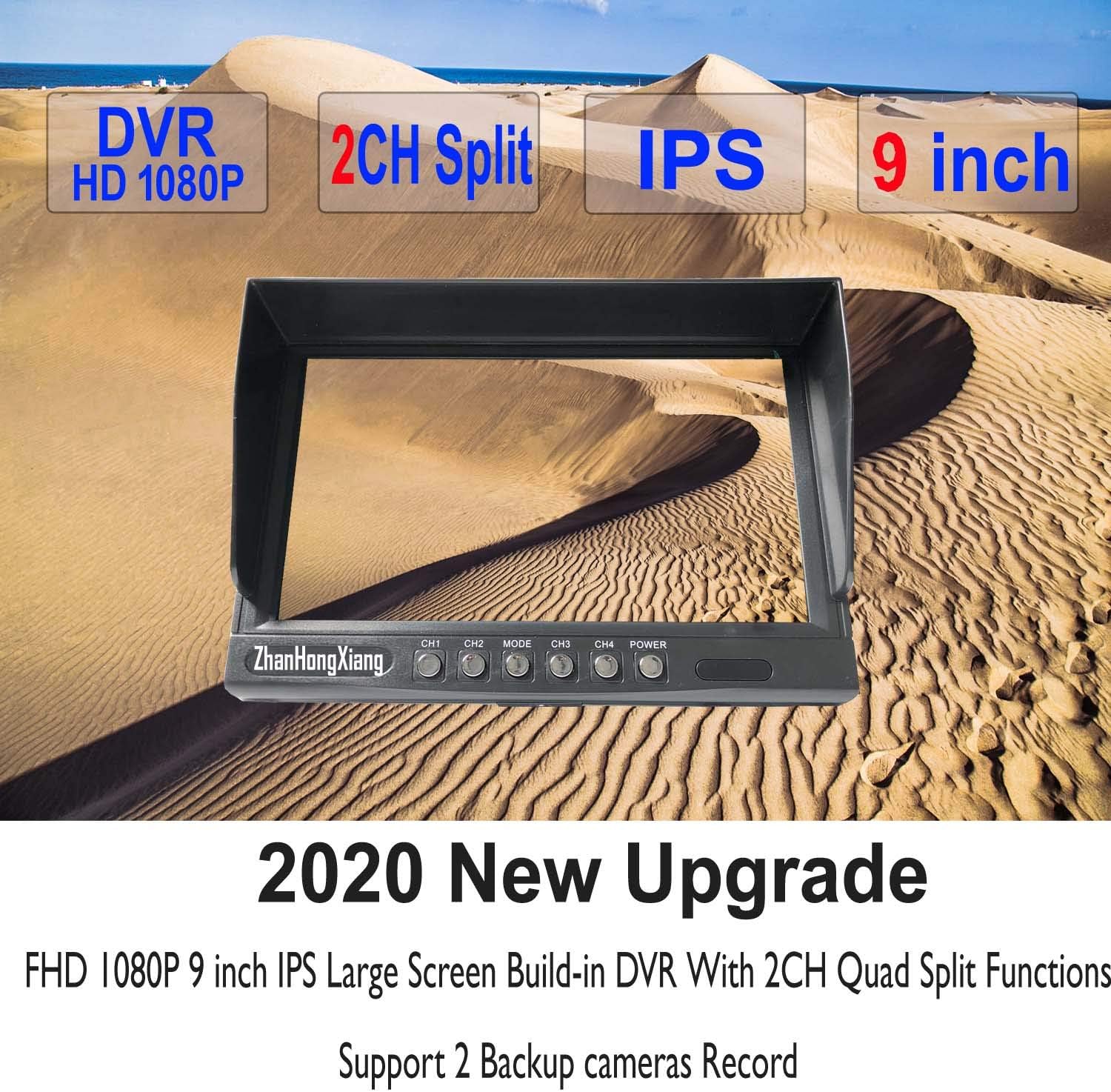

Screen Monitor
9 inch Large screen2 channels video input2-Split functionsBuild with Great Loop DVR recorderDimensions: 230*155mmConsumption:5W
Backup Camera
100% Not Wash Out AHD Mirror image Sensor no Grid LinesNight vision:8 LED IRWaterproof: IP 69K
Power Requirement: DC 12V-24V
Resolution: 1080P
DVR recorder & Playback
Build with loop DVR recorder,Can find the video easily by video playback
Image Flip Function
Image Can be flip with mirror /none Mirror or Upside Down at your enjoy
Grid Line
Reversing Grid Line Can be Turn on /off
8 IR LED
8 IR LED Automatic on for Night Vision
Specification of The Backup Camera System
Monitor Size 9 inch Monitor Input 2 Channel Video Input Monitor Resolution 1024 x 600 Camera IR LED 8 pcs Waterproof Level IP69 Camera Materia Metal Camera Angle of View 150 Degree Power Supply DC 12V-24V Operate Mode Button/Remote Control
Easy to install and operate
Power Supply. DC 12V-24V
Red wire to car key on acc + Yellow wire to car battery+ Black wire to GND,
Green wire to reversing Trigger+ (or No need to connect)
Easy to connect / disconnect
Come with 5m/15m 4pin cable,You can connect the long cable for your trailer easily
available for second cameras install
you can add second ahd 1080p camera for another input
Package List 9-inch DVR Monitor x1 1080p Camera x1 49ft Cable x1 16ft Cable x1 SCREW x4 Monitor Bracket x1 Remote Control x 1 Memory no included
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.9 out of 5 stars
8
3.9 out of 5 stars
5
3.9 out of 5 stars
8
—
4.0 out of 5 stars
7
Price
$129.99$129.99 $139.99$139.99
— $79.99$79.99 $36.99$36.99
Screen size
9 inch 9 inch 7 inch 7 inch
DVR Recorder
✓
✓
✓
✓
Spilt Screen
2-Split 2-Split 2-Split 2-Split
Number of Cameras
2 2 2 1 1
Power Supply
DC12V-24V DC12V-24V DC12V-24V DC12V-24V DC12V
Camera Night Vision
8LED IR 18LED IR 8LED IR 8LED IR 8LED IR
Resolution
1080P 1080P 1080P 1080P 1080P
Memory Card
32 GB 32 GB 32 GB
Video Playback
✓
✓
✓
✓
Car Back up camera and 9 inch DVR recorder monitor parking assistance system: 9 inch IPS Screen AHD 1080P 8 LED IR Night Vision 4Pin universal back up camera and 4 Pin aviation connector cable.Hard wired version reverse camera ,guarantees safe and display stable signal no interference image
Come with 5m/16ft + 15m/49ft 4-Pin aviation Extension cable suitable for Long Bus Truck Trailer RV Van Motorhome Schoolbus 5th wheel Tractor Camper Lorry Pickup all other 12V/24V heavy Duty avoid blind spot
IP69K waterproof rear mirror camera system with 4 Pin Connector, 8 LED IR Night Vison view clearly at night, 100% not wash out AHD 1080P mirror image sensor no distance lines vehicle security camera, 2.3mm lens (150°horizontal wide view angle)
9″ DVR Recording RV video monitoring system,Build in Great Loop Record functions.Max support 128GB SD(Memory excluded),Image can be rotate UP side down or mirror none mirror at your enjoy,with 2 channel video input,can display (single large video )or (2-split video )
Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+) V2 reversing priority
