10″ HD Backup Camera System Kit, Loop Recording Large Monitor with Wired Rear View Camera, IR Night Vision Waterproof Camera with Safe Parking Lines for Bus, Semi-Truck, Trailer, RV, BY104A
Price: $429.99 (as of Jul 21, 2024 16:45:17 UTC – Details)
Product Description
ZEROXCLUB BY104A HD 1080P IPS Monitor Wired System with 4 Cameras
ZEROXCLUB is a brand focus on providing premium quality backup camera. After 12 years of growth and having 9 years of research, we provided unique products and service for thousands of customers. To bring you a safe and convenient journey, we committed to improve and upgrade our products continuously.
No matter you want to know us or want to use the camera better, ZEROXCLUB will be always at your service.
This 10” wired system has a large screen of HD 1080P resolution, the picture quality is clear and crisp, brings an impressive visual experience.The BY104A wired backup camera needs to direct connection to the screen, which can receive the image quicker to get a focused and sharp picture. You will see exactly what’s happening behind you for maximum safety.
The BY104A Wired Backup Camera Kit is Desgined as Your Need
Protect You, Your Family and Vehicle
Loop Recording — It will record what is displayed on the monitor and overwrites the oldest footage with the newest upon filling a memory card to capacity. (a 32GB memory card is included)
Night Vsion –18 bright LED IR lights on camera to provide clear image during nighttime driving.
IP69k Waterproof — With IP69k waterproof performance, ZEROXCLUB backup camera can prevent water from seeping into the camera and withstand the temperature range from -4℉ to 140℉, which is able to withstand extreme weather like wind, and rain, snow.
ZEROXCLUB SERVICE — ZEROXCLUB will provide you a free replacement during the limited hardware period. If you have any quetsions about the products, please feel free to let us know.
Easy to Install
ZEROXCLUB BY104A wired reserving camera system is reliable in that you won’t have to stress yourself about signal interference, as the camera has a solid connection to the monitor. Therefore, you are assured of things running smoothly.
Red wire: Connect the Red wire to Vehicle ignition (ACC 12V+), connecting the Red wire to Vehicle ignition will power up the system while ignition is turned ON.Yellow wire: Connect the Yellow wire to Vehicle battery 12V+.Black wire: Connect the Black wire to Vehicle ground.Green Wire: Connect the Green wire to the vehicle reversing lights 12V+ as a trigger wire.The trigger wires’ connection depends on your need. The 4-pin connector to the cameras as wiring diagram showed. (Please refer to the manual for details.)
Support split screen view — Monitor can display 1 full camera view, or dual and quad split screen view. Just press V₁/V₂ button on the monitor to switch views. Having passenger side cameras in your car makes it safer for lane changing on the highway. In addition to the front-facing camera, rearview camera, and split-screen monitor, you’ll be allowed to view everything surrounding the vehicle.
Versatile — The BY104A backup camera system is purposely made for large vehicles with large blind spots, for example, trailers, campers, RVs, and semi-trucks.
Parking guide lines — It can help you judge the distance between your car and the object around it, which can make your parking safer and easier. You need to connect the Green wire to get the parking guidelines.
Mirror image — The view in your monitor can be reversed to front view/rear-view. It’s handy if you would like to use the camera as a front-view camera.
Compatible Vehicles
Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on RV/Camper/Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on RV/Camper/Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on RV/Camper/Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on RV/Camper/Truck/Trailer/5th Wheel Trailer/Bus/Van/Motorhome/Farm Mach/So on

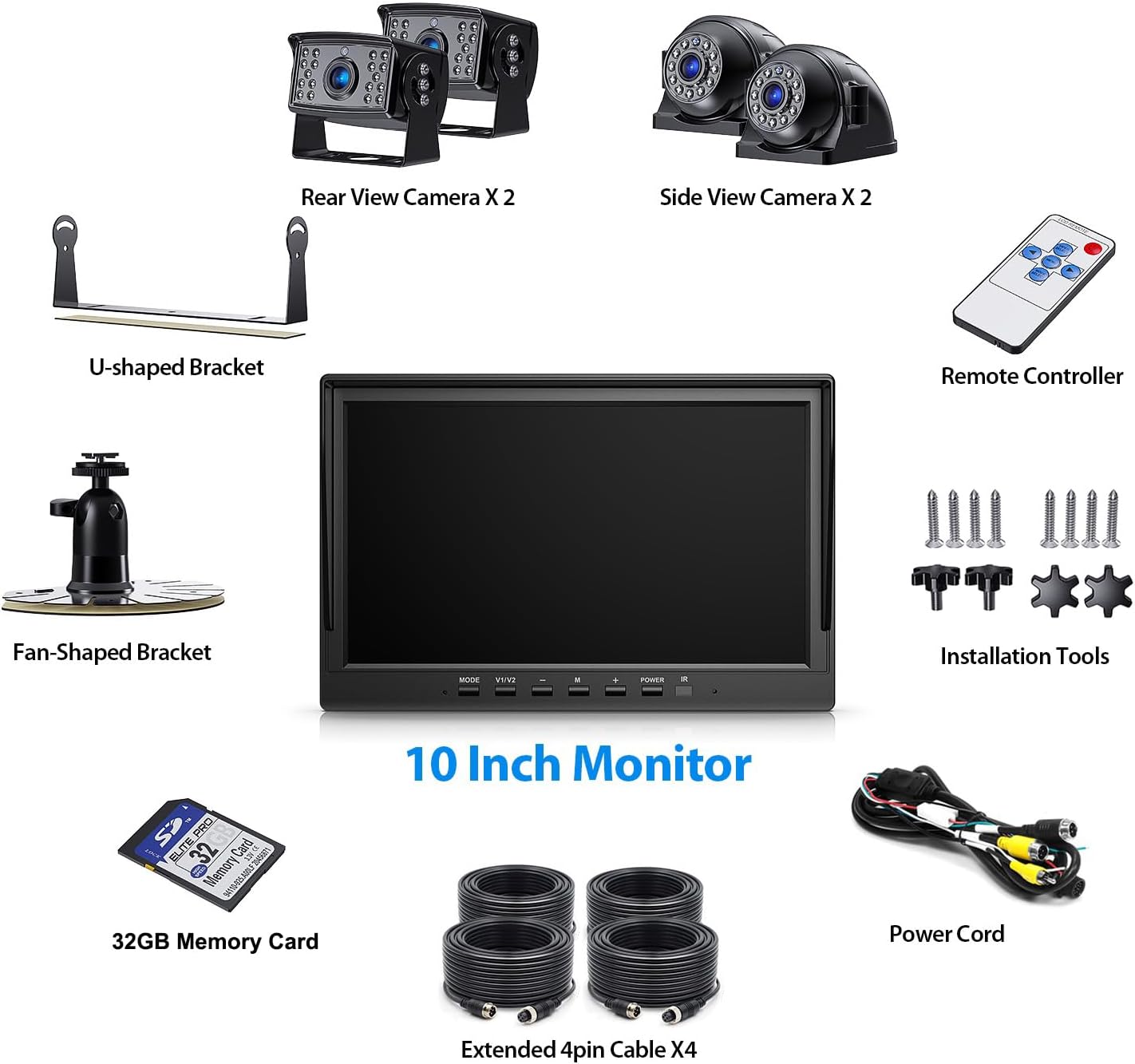

👍10 Inch Wired Backup Camera System: This model BY104A is a wired system, includes a 10 inch large monitor and 2 rear view cameras and 2 side view cameras, which was designed for the bus, semi-truck, trailer, RV, camper specially. With the metel “U” shaped bracket, you could mount the monitor on the dashboard, or mount it to windshield with the suction cup. The Camera comes with a low-profile bracket and a set of larger brackets for more flexible mounting. Voltage ranging: 12 to 24V DC power 👍Loop Recording & Safe Driving: ZEROXCLUB wired backup camera is a good safety option for reversing, because the wide view — 120°angle can help to see the area behind your car easily. If there have children / obstacles / others behind your car, you can see them with the help of the backing camera. Loop video recording function allows it to record what is displayed on the monitor and overwrites the oldest footage with the newest automatically. (a 32GB SD card comes with the package) 👍Split Screen and Parking Guidelines: This monitor will display up to 4 cameras simultaneously or individually for bigger image, no more blind spots. With the parking guidelines, it can help you to judge the distance between your car and the object around it, which can make your parking safer and easier. What’s more, you can change the image to front view or rear view, so you can use one of the camera as the front view camera. Monitor dimension: 9.84 inch(L)*6.46 inch(H) 👍Durable Metal Built Camera: All the 4 cameras are IP69k waterproof standard, whcih can withstand the extreme weather like rain, dust, and snow all year long. They can tolerate temperatures between -4℉ and 140℉. Built in CMOS sensor, 18 automatic LED lights and infrared lights, provides you clear images and capture more details to see people, vehicles, and other obstacles even in a dim condition. Rear Camera size: 3.11(L)*2(W)*2.56 inch(H), Side camera size: 2.24(L)*3.23(W)*2.32 inch(H) 👍Worry-free After-Sales Service: ZEROXCLUB is glad to do business with you! We provide 36 months factory warranty for all our products, and our customer support team is providing 24-hour on line service, you could send us message if you have any problem with the product. If You found an accessory is missing or damaged or you need an extended cable for the camera, please don’t hesitate to Ask Us for Help.
