Car Backup Camera 7″ DVR Monitor System,2 x AHD 1080P 4 Pin Reverse Rear View Mirror Camera 8 IR Night Vision + 7 inch 2-Split IPS Screen 12V-24V for RV Truck Bus Camper Vehicle

Spread the love


Price: $99.99
(as of Nov 03, 2024 21:15:17 UTC – Details)



This is new update Model AHD 1080P backup camera for rv trucks and 7 inch HD DVR recorder reverse rear view ips monitor system
The Monitor has two video input and 2-split functions
Only need to connect the monitor wire with car electronics system:
Red wire to car ACC+,
Yellow wire to car Battery+,
Black wire to GND,
Green wire to reversing Trigger+ (or No need to connect)
Connect cameras with the monitor with 4-pin connect cable.
Easy to install easy to play

7″ Car Rearview DVR MONITOR

Display Size: 7 Inch AHD DVR Screen
Power requirement: DC 12V-24V
Consumption:8W
Video:2 channels input ,Split Screen Display
Our Split monitor can display two video at same time,
It can display two image or single large image,
Build in Great SD DVR Loop Recording functions,
Come with 32GB Memory , Max support 128GB
Image Can be Mirror or None Mirror (So each camera can be set for front view or rear view at your enjoy)
Image Support Flip with Upside Down
Net Weight: Approx. 1000g
Language: English, Chinese

AHD 8 LED IR Car Rear View Camera
100% Not Wash Out AHD 1080P Sensor Mirror image
TV system:PAL
Lens:2.3mm(150 View angle )
Number of pixels: 2 Megapixels Camera(1920*1080)
Minimum illumination:0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision:8 LED IR
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V
Weight: Approx 200g
Waterproof: IP 69K
Product Dimensions ‏ : ‎ 11.02 x 7.09 x 3.15 inches; 3.92 Pounds
Date First Available ‏ : ‎ April 20, 2020
Manufacturer ‏ : ‎ ZhanHongXiang
ASIN ‏ : ‎ B087CZDQ2F
Country of Origin ‏ : ‎ China

4Pin 7 inch rearview monitor With DVR recorder ,2 channels video input,2-Split screen display ,It can display two image or single large image,Building with Great Loop Recording functions, Each camera record with a separate video ,can be search out with the monitor playback easily
IP69 Waterproof IR Night Vision AHD 2.0 Megapixel Reverse Rear Camera with 4 Pin aviation Connector, 8 LED IR Night Vision view clearly at night, 100% Not Wash Out AHD 1080P Sensor HD backup rear view camera wide view angle

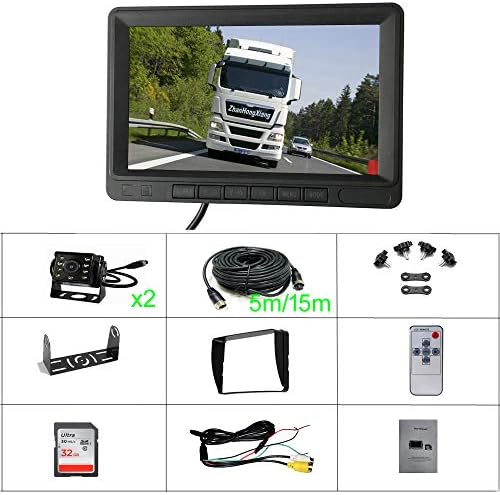

The Back up Camera System come with 2x Reverse Rear View camera ,and 5m/16ft + 15m/49ft 4-Pin Extension cable ,Best for Long RV Bus Semi Box Truck Trailer Van Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Duty
