AHD 720P, Super Clear, 7″ Wired Monitor Rear View Backup Camera System for Farm Tractor, Truck, RV, Forklift, Heavy Equipment, EXCAVTORS, Skid Steer

Price: $159.00
(as of Dec 20, 2024 20:45:19 UTC – Details)

PACKAGE INCLUDING:

◇A. 7″ WIRED SINGLE VIEW MONITOR*1
◇B. AHD 720P WATERPROOF CAMERA*1
◇C. 15METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1

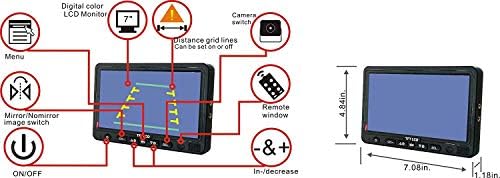

MONITOR SPECIFICATION:

◇7 Inch Wired Color Single View AHD monitor
◇Resolution: 1024(RGB)*600
◇TV System: NTSC/PAL
◇Multiple menu languages
◇Brightness;450cd/m2
◇Support 3 cameras video input
◇Separate trigger control wires for AV2/AV3.
◇Menu to set up reversing image delay time 0-15s, mirror/normal image.
◇Monitor will automatic switch-over the image to related camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and will
switch to back up camera image，Trigger end after shutdown
◇Working voltage: DC12V-36V
◇Keys with LED backlit
◇Built-in short-circuit protector(When installing and connecting the kit,
people connects the female 4-pin connectors to the male one from the camera
and monitor, they sometimes connect the video pin of the camera to the power
pin of the monitor. It may cause a short-cut, the built-in protector may keep
the monitor away from being burnt.)
CAMERA SPECIFICATIONS:

◇sensor：SONY AHD 720P
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 18PCS
◇IR Distance: 35ft
◇Waterproof Rate：IP69K,
◇Housing:aluminum alloy (camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Is Discontinued By Manufacturer ‏ : ‎ No
Package Dimensions ‏ : ‎ 13.54 x 8.11 x 3.94 inches; 4.7 Pounds
Date First Available ‏ : ‎ September 4, 2020
Manufacturer ‏ : ‎ AUTOPAL TECHNOLOGY LIMITED
ASIN ‏ : ‎ B08HJJRVPN
Country of Origin ‏ : ‎ China

【MONITOR】7”LCD AHD 720P color monitor with U-type metal bracket and with 1024RGB x600 HD resolution. It is compatible with most of the vehicles with a free power input range DC12-32V and supports with max 3 cameras. TVS device is built in to protect the monitor from being damaged by the transient high power of vehicles. And this monitor only supplies camera which is in use with DC12V, it saves energy. It is compatible with PAL/NTSC/AUTO.
【HEAVY DUTY CAMERA】It is color AHD 720P, provides super clear and real color image, and no delay. The viewing angle is 120 degree. With waterproof rating IP69K(the highest level), with night vision. So it works perfectly in kinds of weathers. With Heavy duty, 10G vibration-proof rating, it works well with the vehicle which has intensive vibration in extreme conditions.
【Unique Selling Proposition】①.The buttons have automatic LED backlight, drivers can operate exactly at night. ②.Monitor has a built-in protector for protecting monitor from being damaged by power polarities reversed. ③With built-in innovative system previous option settings memory even after it’s turned off. ④.Camera’s image can be set as mirror, non-mirror or up-side-down by OSD menu. ⑤Distance grid line can be turned on or off by OSD menu.
Unique Selling Proposition】①Monitor has two trigger wires. Monitor will be triggered to be turned on automatically to display camera image when reversing. After reversing, the monitor will be back to the pervious mode. ②This system has two viewing options(view when reverse or remain on continuously). ③We uses waterproof Aviation 4-pin screw connectors, NO BNC/RCA. ④Easy to install. ⑤Two-year warranty and life-time tech support.⑥Contact us to tell us your needs, we can customize a kit for you.
